The Series 5500 Bridging Platform also referred to as Light Weight Staging, provides a safe, uninterrupted working platform.
- Industrial Duty Rated
- Lightweight construction
- Frame manufactured from structural aluminium
- Platforms available with plywood or aluminium deck
- Platform lengths available from 3.6m to 7.2m
- Rope lugs fitted for easy lifting and tying down
- Minimum overlap of 300mm is suggested
- Maximum permissible point load – 200kg/m2
- Maximum permissible load on platform – 400kg
Accessories

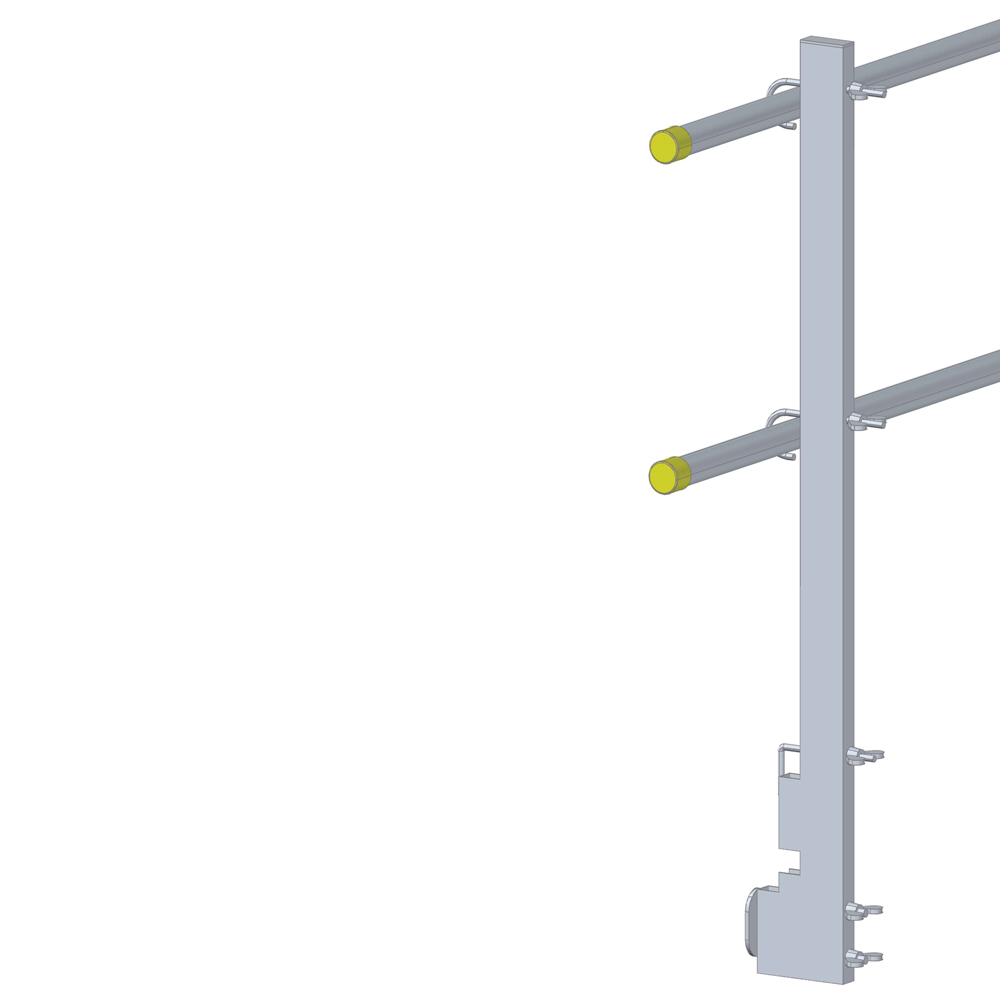

- Modular clip-on handrails
- Platform hooks
- Plywood or aluminium toe board systems

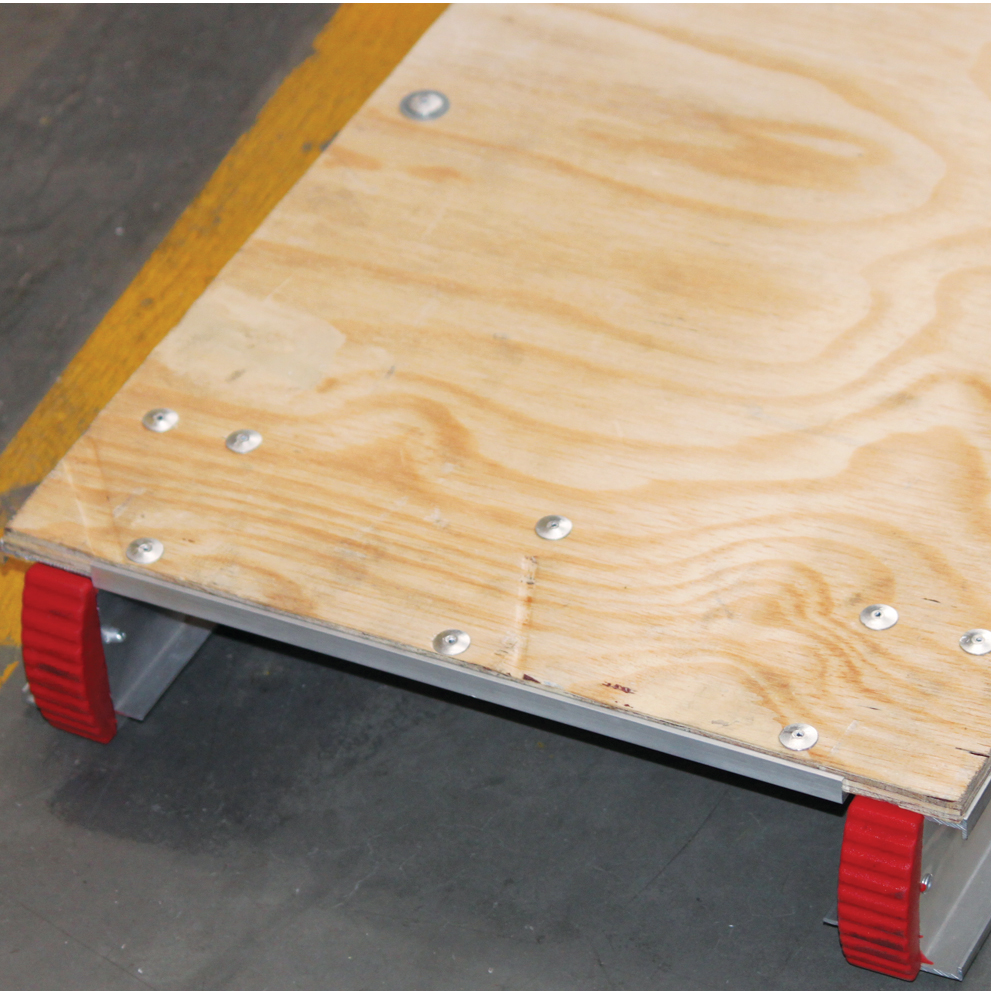

| Wooden Deck |
| Platform Length (m) |
|
3.6 |
 4.2 |
 5.4 |
 6.0 |
 6.6 |
 7.2 |
| Width (mm) |
Width of Platform |
450 |
450 |
450 |
450 |
450 |
450 |
| Height (mm) |
Height of Platform |
100 |
100 |
100 |
100 |
100 |
100 |
| Weight (kg) |
Weight of Platform |
27.5 |
31.9 |
40.5 |
45.0 |
49.4 |
53.7 |
|
|
|
|
|
|
|
|
| Handrail |
|
|
|
|
|
|
|
| Upright |
 Clip-on Aluminium upright, number required per side |
3 |
3 |
3 |
4 |
4 |
4 |
| Handrail |
 38mm Aluminium tubes, 1000/ 590mm above platform |
2 |
2 |
2 |
2 |
2 |
2 |
| Weight (kg) |
 Weight of handrail system per side |
8.4 |
8.9 |
9.8 |
12.1 |
12.6 |
13.0 |
|
|
|
|
|
|
|
|
| Total weight (kg) with Plywood deck platform |
35.9 |
40.8 |
50.3 |
57.1 |
62.0 |
66.7 |
| Total weight (kg) with Aluminium deck platform |
44.3 |
49.7 |
60.1 |
69.2 |
74.6 |
79.8 |
| Aluminium Deck |
| Platform Length (m) |
|
3.6 |
 4.2 |
 5.4 |
 6.0 |
 6.6 |
 7.2 |
| Width (mm) |
Width of Platform |
450 |
450 |
450 |
450 |
450 |
450 |
| Height (mm) |
Height of Platform |
100 |
100 |
100 |
100 |
100 |
100 |
| Weight (kg) |
Weight of Platform |
29.6 |
34.4 |
43.6 |
48.5 |
53.3 |
57.9 |
|
|
|
|
|
|
|
|
| Handrail |
|
|
|
|
|
|
|
| Upright |
 Clip-on Aluminium upright, number required per side |
3 |
3 |
3 |
4 |
4 |
4 |
| Handrail |
 38mm Aluminium tubes, 1000/ 590mm above platform |
2 |
2 |
2 |
2 |
2 |
2 |
| Weight (kg) |
 Weight of handrail system per side |
8.4 |
8.9 |
9.8 |
12.1 |
12.6 |
13.0 |
|
|
|
|
|
|
|
|
| Total weight (kg) with Plywood deck platform |
 38.0 |
 43.2 |
 53.4 |
 60.6 |
 65.9 |
 70.9 |
| Total weight (kg) with Aluminium deck platform |
 46.4 |
 52.1 |
 63.2 |
 72.7 |
 78.5 |
 83.9 |
